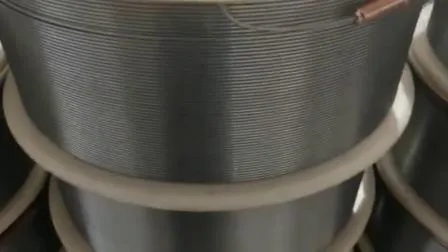

Stainless Steel Wire for Wire Mesh with Ce Certificate (0.3

Basic Info.

Model NO.	304, 316, 304L, 316L, etc
Metal Wire Drawing	Hot Drawing
Status	In Hard State
Thickness	Metal Filament
Transport Package	OEM, Juli Packing
Specification	0.3-3.0mm, 1kg-200kg
Trademark	JULI
Origin	China
HS Code	7223000000
Production Capacity	30000tons/Year

Product Description

Product Details
Product Name: Stainless steel Welding wire
Standard : ISO9001,ISO14001,OHAS 18001
Approval Certificate:CCS, ABS,DNV,LR,BV,GL,RINA,NK,KR,DB,TUV,CWB,CE
Diameter: 0.6-4.0mm
Type: welding wire ( tig /mig )
PACKAGE: 1kg,5kg,15kg,20kg, and other customized requirement
Brand: JULI or OEM
Parameter
Chemical Compositions of Stainless Steel Welding Wire:

	C	Si	Mn	P	S	Cr	Ni	Mo	Cu
304	0.08	0.30-1.00	2.00	0.045	0.030	18.00-20.00	8.00-11.00	0.18	0.003
304L	0.03	0.30-1.00	2.00	0.045	0.030	18.00-20.00	8.00-12.00
ER307	0.04-0.14	0.30-0.65	4.30-4.75	0.030	0.030	19.50-22.00	8.00-10.70	0.5-1.5	0.75
ER308	0.08	0.30-0.65	4.30-4.75	0.030	0.030	19.50-22.00	9.00-11.00	0.75	0.75
ER308L	0.03	0.30-0.65	1.50-2.30	0.03	0.02	19.5-21.5	9.00-11.00	0.75	0.75
ER308LSi	0.03	0.65-1.00	1.60-2.40	0.03	0.02	19.5-21.5	9.0-11.0	0.75	0.75
ER309	0.12	0.30-0.65	1.00-2.50	0.03	0.03	24.0-25.0	12.0-14.0	0.75	0.75
ER309L	0.03	0.3-0.65	1.5-2.3	0.03	0.02	23.0-25.0	12.0-14.0	0.75	0.75
ER309LSi	0.03	0.65-1.0	1.6-2.4	0.03	0.02	23.0-25.0	12.0-14.0	0.75	0.75
ER316	0.08	0.3-0.65	1.0-2.5	0.03	0.03	18.00-12.00	11.0-14.0	2.0-3.0	0.75
ER316L	0.03	0.3-0.65	1.5-2.3	0.03	0.02	18.0-20.0	11.0-13.0	2.05-2.55	0.75
ER316LSi	0.03	0.65-1.0	1.6-2.4	0.03	0.02	18.0-20.0	11.0-13.0	2.05-2.55	0.75
ER310	0.08-0.15	0.3-0.65	1.0-2.5	0.03	0.03	25.0-28.0	20.0-22.5	0.75	0.75
ER347	0.08	0.3-0.65	1.0-2.5	0.03	0.03	19.0-21.5	9.0-11.0	0.75	0.75
ER317	0.08	0.3-0.65	1.0-2.5	0.03	0.01	18.5-20.5	13.0-15.0	3.0-4.0	0.75
ER321	0.08	0.3-0.65	1.5-2.5	0.03	0.01	18.5-20.5	9.0-10.5	0.75	0.75

Mechanical Properties of Welding Wire:

	Tensile strength Rm(Mpa)	Yield strength Rel or Rp0.2(Mpa)	Elongation(%)		Tensile strength Rm(Mpa)	Yield strength Rel or Rp0.2(Mpa)	Elongation(%)
304	550	--	25	ER309LSi	510	320	25
304L	510	--	25	ER316	510	320	25
ER307	590	350	25	ER316L	510	320	25
ER308	550	350	25	ER316LSi	510	320	20
ER308L	510	320	25	ER310	550	350	25
ER308LSi	510	320	25	ER347	550	350	25
ER309	550	350	25	ER317	550	350	25
ER309L	510	320	25	ER321	550	350	25

Application
Chemical Machinery/Petroleum Machinery/Automobile Making/Pipeline/Pressure Vessel/Bridge/Hoisting Machinery
Testing Lab

About us
Shandong Juli Welding Co,.Ltd is one of the biggest manufacturer of welding materials and one of the most effective welding company which is located in Dezhou city, Shandong province, China which established in 1998.
Its building covers more than 250000 square meters with more than 800 workers. The total capacity of the company is up to 600,000 metric tons and the fixed asset is300,000 metric tons per year now. Juli has exported to more than 70 oversea countries in the EU area, Middle-east area, America, South-east Asia, Russia, India and Africa. It has been hold the most shares in some countries and annually exports more than 100000 metric tons.
